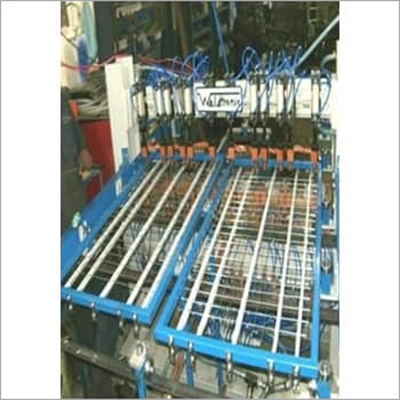

Wire Mesh Welding Modular Kitchen Basket Type C
Product Details:
X
Product Description
FEATURES: WIPL - BAS-016
- Can Weld U Baskets
- 6 Spots Sequentially Can Be Done
- Saves Handling Time
- Unskilled Labour Required
- Increases Production Capacity
- Compact Design
TECHNICAL SPECIFICATION :
| Cross Mesh Width (mm.) | 300 X 500 X 300 DEEP |
| No. of Appx. Electrodes | 6 |
| No. of Spots / Min. | 30/ 60 |
| Pitch (mm.) | 25 - 50mm. |
| Electrode Force (k.g. F) | 190 |
| Wire Dia. (mm.) | 2-3-4-6 |
| No. of Trx. | 1 |
| Total Kva | 50 |
| Sequence | AUTOMATIC PLC BASED |
| Fixture | MANUAL EJECT AND INSERT |
| Electronic Control | MICRO PROCESSOR BASED |
APPLICATION : Vegetable Trolley, Fridge Baskets, Bicycle Basket, Shoe Rack
